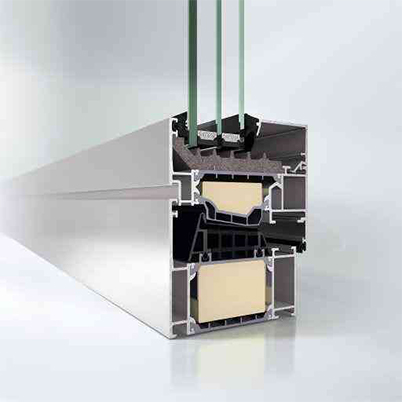

AWS 112 IC Window System

Passive house certified aluminum alloy window system meets high thermal insulation requirements

The Schüco AWS 112.IC (heat shield) window system is an aluminum alloy window system that meets the strict Passive House certification standards. The slim visible surface width is only 120 mm, and it can be used as a complete profile for surface spraying. In addition, it integrates three key advantages into one system: the advantages of aluminum alloy windows have been repeatedly tested, exerting extremely outstanding thermal insulation performance and realizing the slim profile solution pursued by architects to ensure glass transparency.

energy

■ Uf value = 0.8?W/(m2K) (120?mm viewing area width): excellent thermal insulation performance, in line with Passive House certification standards

■ The aluminum alloy window with triple-layer glass (Ug = 0.6?W/(m2K) and plastic partitions) achieves the insulation level of Uw = 0.75?W/(m2K)

■ Optimize the thermal insulation performance through thermal insulation cover profiles that do not require thermal bridge fixation

design

■ The new fan frame design is based on the hidden fan: combining the slender width of the visible surface with the large-area glass design

automation

■ Schüco TipTronic can be used as an electromechanical hardware solution

Security

■ The certified anti-theft level can reach RC 3
