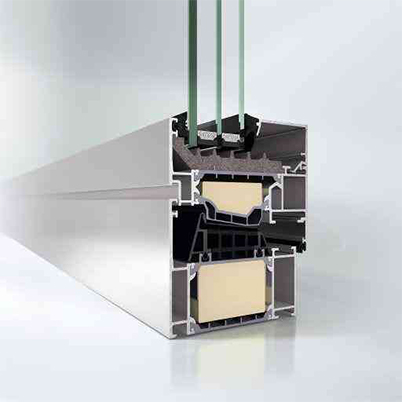

AWS 120 CC.SI window system

The optimized Schüco composite window system completes the modern window series of Passive House standards by integrating comfort and climate control functions to a high degree

The Schüco AWS 120 CC.SI composite window system integrated with Schüco shading CCB is a complete energy-saving building solution. Its thermal insulation performance reaches the level of a passive house, and it can be shaded in any weather conditions. When the shutters are rolled up, they are hardly exposed, and there will be no sunlight on the side when they are laid down. This allows the Schüco AWS 120 CC.SI window system to meet various high design requirements with good interior and exterior views. Concealed shutters can be clamped quickly, and the installation is extremely reliable. The composite window system can integrate Schüco ventilation system and Schüco TipTronic hardware to achieve effective ventilation as required.

Product expansion: shading parts integrated into fixed fans

If the window sash unit does not need to have a normal opening function, integrating the sunshade into the fixed fan and installing the inspection fan is the most effective solution. The structure of the inspection fan has been simplified, and it is only turned on during maintenance and cleaning, and is normally kept locked. In terms of hardware accessories, a flat lock cover and a design cover with a changed structure will be added, which can be removed as required. In order to open the inspection fan, the Schüco standard mounting handle needs to be integrated into the lock cover. This economical fixed fan solution can retain the installation advantages of the sunshade, and can also play a good sound insulation function.

energy

■ Innovative heat insulation concept, Uf value from 0,85?W/(m2K), exerting excellent and measurable heat insulation performance, reaching the level of passive house

■ Installation of Schüco composite window shutters without thermal bridges: reduce heat transfer

design

■ Integrate Schüco sunshade CCB, concealed installation

■ Hidden louver guide: no light shines on the side

■ Provide outer fan with hidden frame glass

■ New: Fixed fan solution with inspection fan, new flat lock box with design cover, surface treatment of profile can be designed according to requirements

automation

■ It is possible to install electromechanical hardware Schüco TipTronic for composite fans

Security

■ The anti-theft level can reach RC 3

Enhanced function

■ Two layers of sealant strips and multiple panels: improve the sound insulation level to 53?dB, and the fixed fan with inspection fan can reach 56?dB

■ The gap between the window panels realizes controllable ventilation: further reduces condensation

■ New: Fixed fan with inspection fan integrates sunshade for the first time
