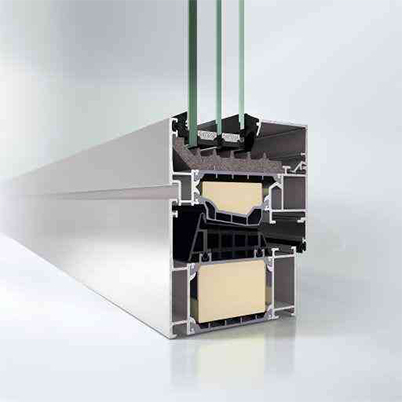

AWS 90.SI+ window system

The Schüco window system product series with a structural depth of 90? mm combines the advantages of aluminum alloy materials with excellent thermal insulation standards, and is suitable for design-oriented sustainable buildings

Schüco provided a comprehensive modular window system for profiles with a structural depth of 90 mm, which achieved the latest Passive House certification. The Schüco AWS 90.SI+, Schüco AWS 90.SI+ Green and Schüco 90 BS.SI+ product series meet good thermal insulation standards and create comfortable architectural design spaces while meeting structural requirements.

With the slim visible surface width and hidden fan structure, the Schüco AWS 90 BS.SI+ product series realizes a coordinated single fan design, and from now on, it also provides a double fan solution. A system with a structural depth of 95 mm can also meet the Passive House standard.

Innovative, long-lasting, and leading the future — The Schüco AWS 90.SI+ Green window system series uses high-density renewable raw materials for thermal insulation, foam and sealing tape for the first time. Such as the use of ecological castor oil in the heat insulation strips to replace fossil fuels.

energy

■ The Schüco AWS 90.SI+ window system with improved thermal insulation performance, Uf ≤ 0,8?W/(m2K), obtained Passive House certification

design

■ The Schüco AWS 90 BS.SI+ with hidden fan has an opaque appearance: the slim viewing surface width starts from 77?mm

■ Now the hidden sash window system also provides double sash design

automation

■ Can be combined with Schüco TipTronic

Security

■ Use Schüco AvanTec SimplySmart hidden hardware system

■ The anti-theft level can reach RC 1 N, RC 2 and RC 3

Enhanced function

■ Series of products meet the highest heat insulation requirements and reach the level of passive house:

■ Hidden sash windows without exposed sash
