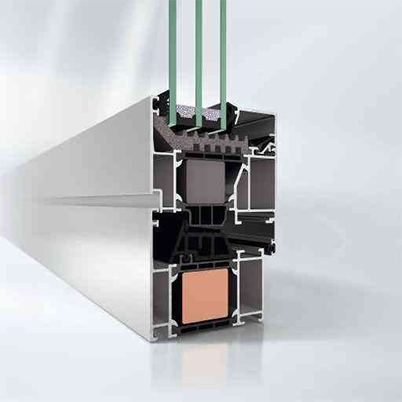

AWS 75.SI window system

The flexible standard window system series meet the high requirements of thermal insulation. The Schüco SimplySmart technology optimized by processing and processing. The Schüco window system product series with a depth of 75 mm provides super thermal insulation (SI) design to meet the high requirements of thermal insulation. It has convincing performance characteristics in terms of function, design and processing. The Schüco AWS 75.SI+ standard window system is well insulated, with a viewing surface width of 117 mm. The Schüco SimplySmart technology uses a coherent intermediate sealing strip to separate the new glass grooves to achieve effective processing for the system. Using the new Schüco AvanTec SimplySmart mechanical hardware system can greatly save installation time.

The Schüco AWS 75 BS.SI+ hidden fan system with a hidden fan frame design has a slim appearance and provides good transparency to meet various architectural needs.

The highly insulated Schüco AWS 75 WF.SI+ window system is based on the Schüco concealed fan system and is specially designed for economical ribbon windows, equipped with unified mullion/beam type floor-to-ceiling windows.

energy

■ High heat insulation aluminum alloy window system, Uf value from 0,92?W/(m2K)

■ Uf = 1,2?W/(m2K) (viewable surface width 117?mm), Uw = 0,90?W/(m2K), Ug = 0,6?W/(m2K)

■ Fin-shaped middle sealing strip, micro honeycomb rubber design

■ Hidden fan system with excellent heat insulation performance

design

■ Eye-catching design options: Schüco AWS 75 BS.SI+ hidden fan system with hidden fans and Schüco AWS 75 WF.SI+ with mullion/beam appearance

■ Optional: standard fan contour or residential contour

automation

■ Schüco TipTronic can be used as an electromechanical hardware solution

Security

■ The anti-theft level can reach RC 3

■ Enhanced functions

■ Can choose to open
