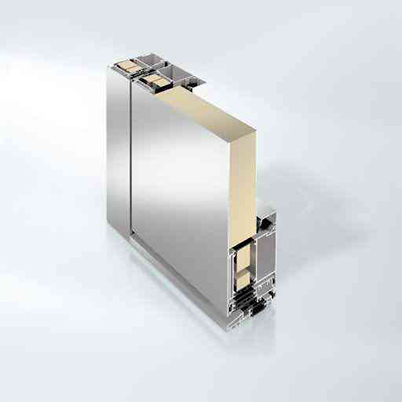

ADS 90.SI door system

The optimized Schüco composite window system completes the modern window series of Passive House standards by integrating comfort and climate control functions to a high degree

Schüco ADS 90.SI and Schüco ADS 90 PL.SI door systems provide better performance for private residential and commercial buildings. The development market trend of energy saving and thermal insulation is playing an increasingly important role in new buildings and renovation projects. Character. Schüco responds to this trend with the ADS 90 door series. The enlarged heat insulation zone, the continuous middle sealing strip and the special heat insulation glass notch insulation provide outstanding features for the system, such as rainstorm-proof sealing performance up to 750Pa, Uf value up to 1,4 W/(m²K) . The installation of triple glass or the use of energy-saving fan panels can optimize the Ud value to> 1,0 W/(m2K). Schüco uses today's products to achieve future insulation standards. The Schüco ADS 90.SI and Schüco ADS 90 PL.SI aluminum alloy door systems provide greater flexibility. It can be connected with a series of additional functions, such as combining the award-winning product Schüco Door Operating System (DCS) to provide a simple and stylish access control solution. In order to maintain the perfect function, the system can also perfectly integrate the door top closer with flat sliding rail (ITS 96). The result is a seamless integration of energy-saving performance, modern technology and design requirements. At the same time, security requirements are also taken into account-the anti-theft level can reach RC 3 (WK3). The edge-pressed Schüco ADS 90 PL.SI high-end entrance door meets the requirements of residential projects, while the flush Schüco ADS 90.SI door system provides good performance for luxury residential and commercial building projects.

Product expansion: shading parts integrated into fixed fans

If the window sash unit does not need to have a normal opening function, it is an effective solution to integrate the sunshade into the fixed fan and install the inspection fan. The structure of the inspection fan has been simplified, and it is only turned on during maintenance and cleaning, and is normally kept locked. In terms of hardware accessories, a flat lock cover and a design cover with a changed structure will be added, which can be removed as required. In order to open the inspection fan, the Schüco standard mounting handle needs to be integrated into the lock cover. This economical fixed fan solution can retain the installation advantages of the sunshade, and can also play a good sound insulation function.
